Exhausto / Exodraft / Enervex RS, GSV&
RSV Fan Parts
Motors, Axial Vanes, Impellers & Capacitors
Visit our NEW parts site at
enervexparts.com

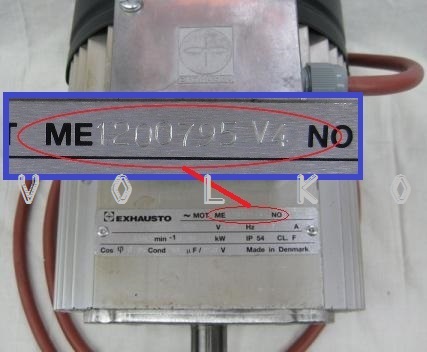

 IE... This fan motor is an Enervex /
Exhausto
ME# 1200795 V4 Motor. ( RES1200795 ) |
TP-211 is a Thermal Protection Code… it is not a part
number for a motor.
TP indicates a motors Thermal Protection.
TP211 – Indicates protection against both rapid and slow overload.
When a motor’s heat rises too high, the thermal protector
turns off electricity.
This stops the motor from overheating and catching on fire. Thermal
protectors are placed internally inside the motor.
|
| Enervex / Exhausto Fan Motor Identification If the Enervex
/ Exhausto fan model number, found on the tag on top of the fan
housing, is not legible an ID tag is also located on the motor body.
ID an Enervex / Exhausto fan motor is by the
ME #'s... last two are alpha-numeric. |
We sell all Enervex fans, controls, and
parts. Click below for Product Information and Installation Manuals.
Part Identification
Prior to 2012 all fans
and parts were identified as Exhausto, made in Denmark.
Exhausto is now Exodraft, distributed as Enervex. Name has changed... parts are the same.
Enervex Fan
RSV / GSV |
Motor
Type |
Motor
Part Number |
Fan Blade
Type |
Fan Blade
Part Number |
Capacitor
Size |
Capacitor
Part Number |
| RS9 |
E4 |
 RES1200330
# 651.0501.1200 |
Axial |
RES1100222
# 601.0200.0010 |
4 MFD |
RES2000958
# 601.0200.0064 |
| RS12 |
G4 |
RES1200265
# 651.0502.1200 |
Axial |
RES1100214
# 601.0400.0010 |
6 MFD |
RES2000853
# 601.0400.0064 |
| RS14 |
J4 |
RES1200284
# 651.0503.1200 |
Axial |
RES1105008
# 601.0600.0010 |
12 MFD |
RES2000842
# 604.0400.0064 |
| RS16 |
T4 |
RES1200272
# 651.0505.1200 |
Axial |
RES1100026
# 601.0800.0010 |
25 MFD |
RES2000816
# 601.0800.0064 |
| |
|
|
|
|
|
|
| RSHT9 |
Split Shaft |
# 652.0501.1200 |
Axial |
# 602.0200.0010 |
10 MFD |
# 602.0200.0064 |
| RSHT12 |
Split Shaft |
# 652.0502.1200 |
Axial |
# 602.0400.0010 |
12 MFD |
# 604.0400.0064 |
| RSHT14 |
Split Shaft |
# 652.0503.1200 |
Axial |
# 602.0600.0010 |
25 MFD |
# 601.0800.0064 |
| RSHT16 |
Split Shaft |
# 652.0504.1200 |
Axial |
# 602.0800.0010 |
35 MFD |
# 602.0800.0064 |
| |
|
|
|
|
|
|
| RSV / GSV9 |
E4 |
RES1200330
# 651.0501.1200 |
Axial |
RES1100263
# 604.0200.0010 |
4 MFD |
RES2000958
# 601.0200.0064 |
| RSV / GSV12 |
J4 |
RES1200284
# 651.0503.1200 |
Axial |
RES1105402
# 604.0400.0010 |
12 MFD |
RES2000842
# 604.0400.0064 |
| RSV / GSV14 |
Q4 |
RES1200329
# 651.0504.1200 |
Axial |
RES1100159
# 604.0600.0010 |
16 MFD |
RES2000959
# 604.0600.0064 |
| RSV / GSV16 |
V4 |
RES1200795
# 650.0503.1200 |
Axial |
RES1100704
# 604.0800.0010 |
30 MFD |
RES2000957
# 604.0800.0064 |
| GSV16 Before
2009 |
V4 |
RES1200297 Disc. |
Axial |
DISCONTINUED |
Replace w/ (19mm) V4 Motor RES1200795
with corresponding axial vane & capacitor |
| RSV16 Before
2009 |
V4 |
RES1200297 Disc. |
Axial |
DISCONTINUED |
| |
|
|
|
|
|
|
| RSV / GSV200 |
J4 |
RES1200284
# 651.0503.1200 |
Centrifugal |
RES1100079
# 605.0400.0010 |
12 MFD |
RES2000842
# 604.0400.0064 |
| RSV / GSV250 |
Q4 |
RES1200329
# 651.0504.1200 |
Centrifugal |
RES1100194
# 605.0600.0010 |
16 MFD |
RES2000959
# 604.0600.0064 |
| GSV315 |
V4 |
RES1200795
# 650.0503.1200 |
Centrifugal |
RES1100725
# 633.0800.0010 |
30 MFD |
RES2000957
# 604.0800.0064 |
| RSV315 |
V4 |
RES1200795
# 650.0503.1200 |
Centrifugal |
RES1100709
# 605.0800.0010 |
30 MFD |
RES2000957
# 604.0800.0064 |
| GSV315 Before
2009 |
V4 |
RES1200297 Disc. |
Centrifugal |
DISCONTINUED |
Replace w/ (19mm) V4 Motor RES1200795
with corresponding impeller & capacitor |
| RSV315 Before
2009 |
V4 |
RES1200297 Disc. |
Centrifugal |
DISCONTINUED |
| |
|
|
|
|
|
|
| BESB250 |
V4 (19mm) |
RES1200974
# 650.0504.1200 |
Centrifugal |
RES0301029
# 699.0200.0008
DISCONTINUED |
30 MFD |
RES2000957
# 604.0800.0064 |
***
In 2009 V4 motors have had a shaft change from 14mm (1/2") shaft to the newer
19mm (3/4) shaft....
Check motor tag for "ME" part number.... it is recommended that the older
V4 #1200297 motor be replaced with a new V4 motor #1200795 and include corresponding
fan blade and capacitor.
***

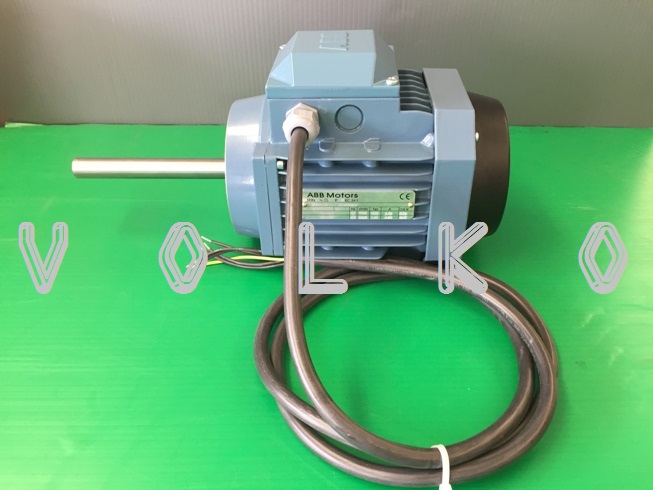

In 2009 1HP motors have had a shaft change from 14mm (1/2") shaft to the newer
19mm (3/4) shaft....
Check motor shaft size.... it is recommended that the older 14mm 1HP motor be replaced
with a new
19mm 1HP motor #1200803 and include corresponding
impeller.
Stocking Dealer - Knowledgeable Staff -
Expedited Shipping Available
Please call 800 685 8263 for
prices
We only provide genuine Exhausto Exodraft Enervex replacement parts.
 Enervex /

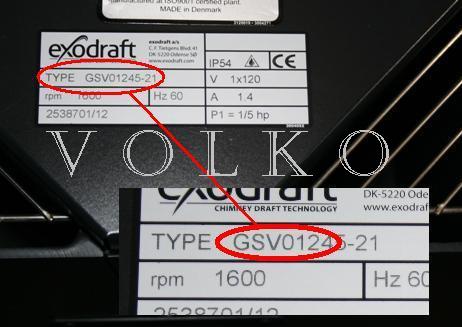

Exhausto / Exodraft Fan Identification
ID an Enervex fan by the
first 6 alpha-numeric digits located on the tag.
IE... This fan is an Enervex
GSV012 or GSV 12.
Exodraft fans are made in
Denmark, 115 - 120v fans are provided for North America
and distributed as Enervex fans.
Read More...
|
 |
The ID tag, located on the top plate for GSV/RSV
fans, can become illegible from age or after a high heat event.
To determine the correct Enervex fan model and size... confirm
if it has an axial vane or backward curved impeller... and
reference a few housing measurements against an Enervex fan spec
chart.
This fan (left) was off a pizza oven from a restaurant.
***** Commercial kitchen would require a GSV series fan.
***** Axial vane would narrow it to 1 of 4 fans... GSV009 thru
GSV016.
***** 15" measured off the housing makes this a GSV012
The clam shell measurement of about 15" was used against the fan
model chart located here...
www.enervexsource.com/pizzaovenfans.htm
B x B chart measurement of 15.37" confirmed this to be a GSV012 |
 |
|
 |
|

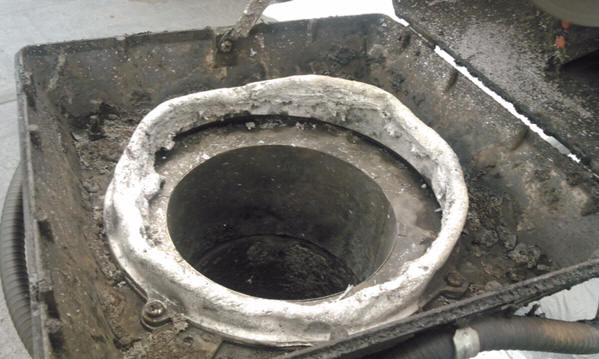

| Fire
in the hole!!!!.... This was an inlet collar. |
|
Impeller Seats / Insert &
Inlet Collars |
|
 |
|
 |
|
 |
 |
Capacitor
Wiring Diagram |
 |

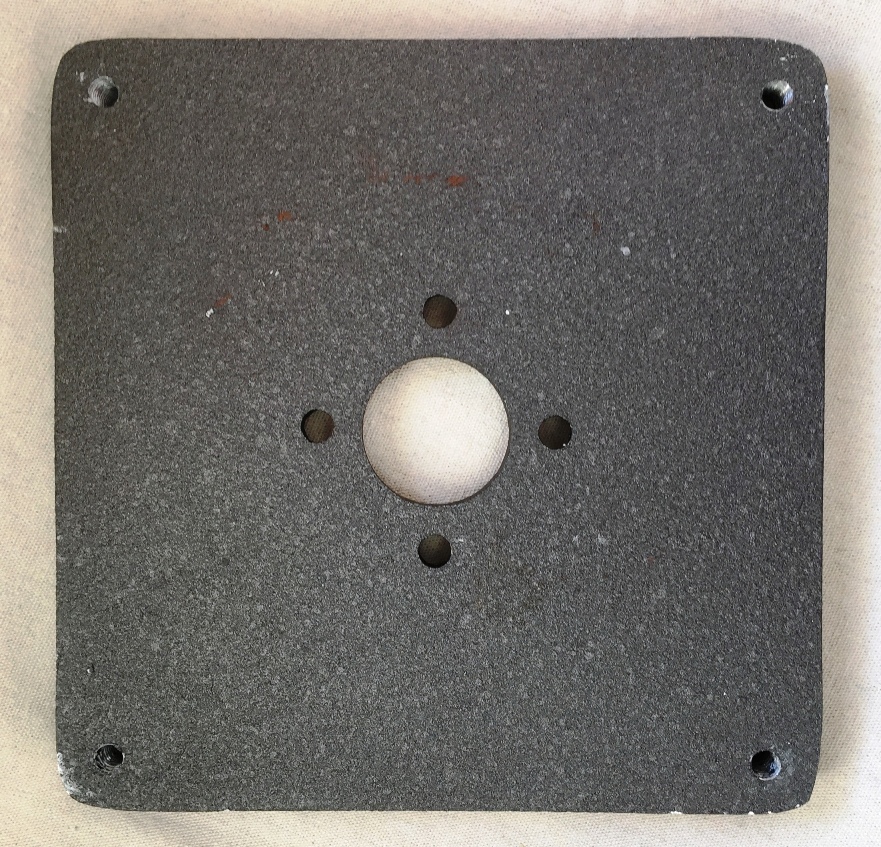

Motor Mount Flange
RES1100693
GSV 315 |
 |
|
|

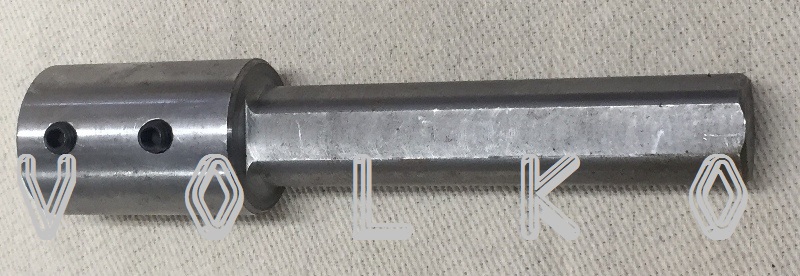

Shaft
Extensions |
|

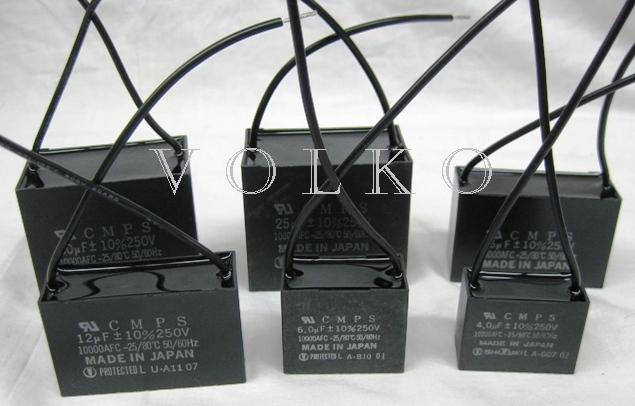

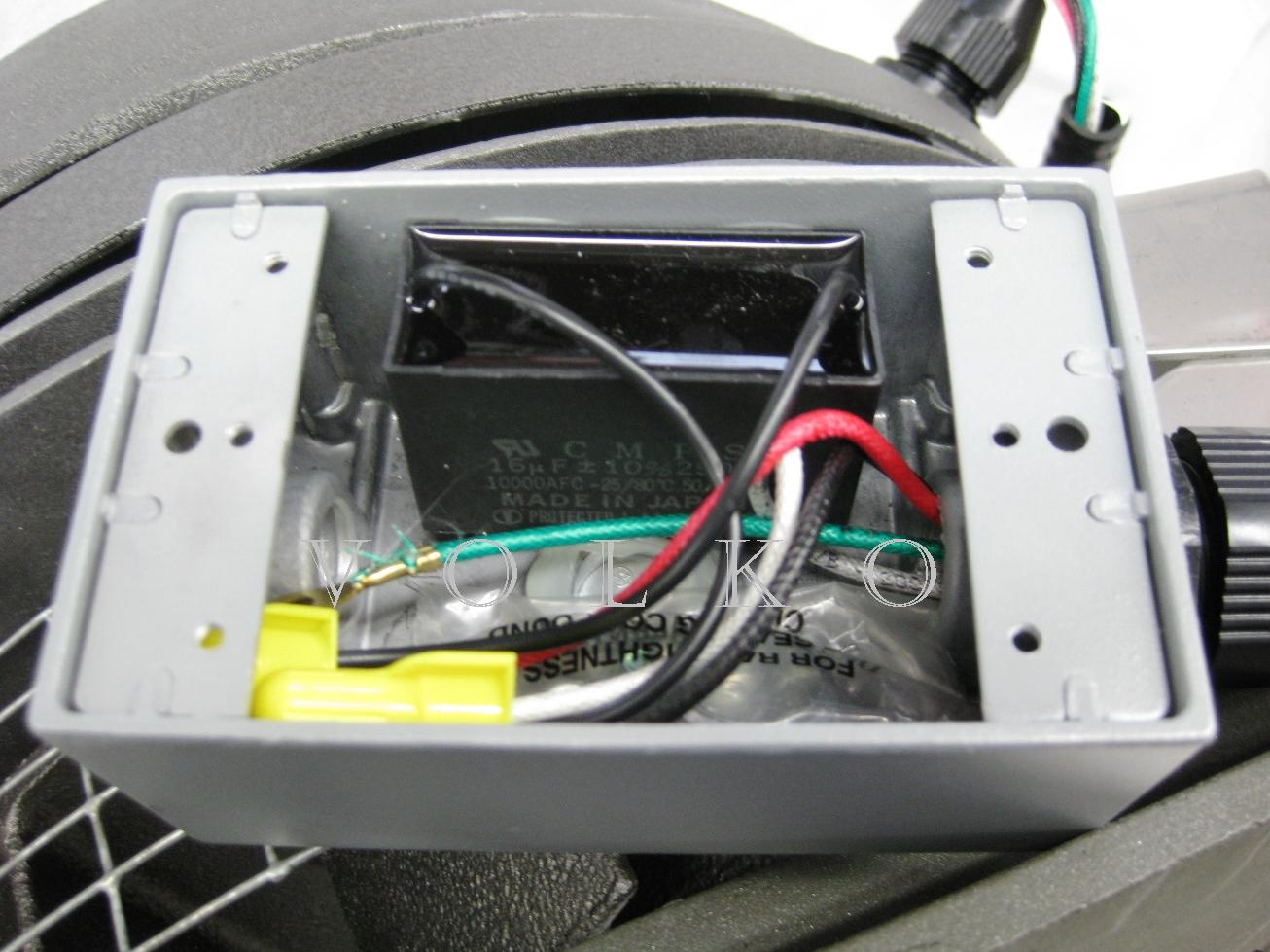

Start Capacitors
Fan start capacitors are located in
the Electrical Junction Box
It is recommended to also change the
start capacitor
as part of a motor replacement. |
 |

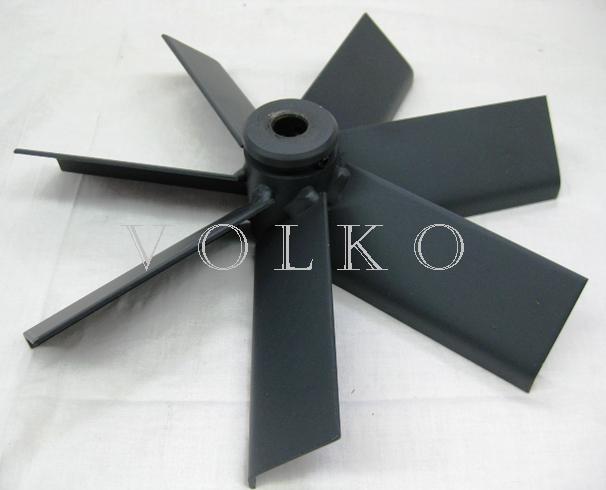

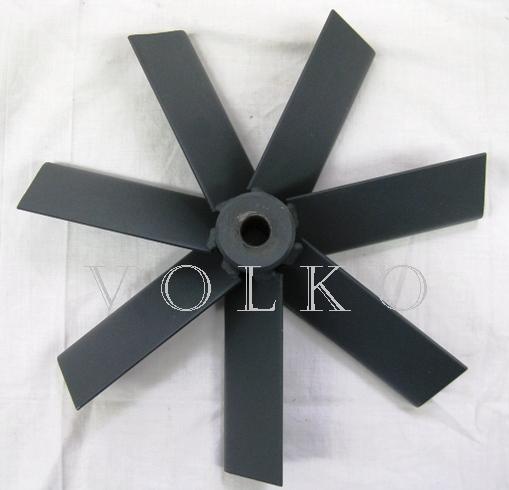

Fan Blade
Identification
Axial Vane
Also called:
Impeller or Prop Blade
|
 |
 |

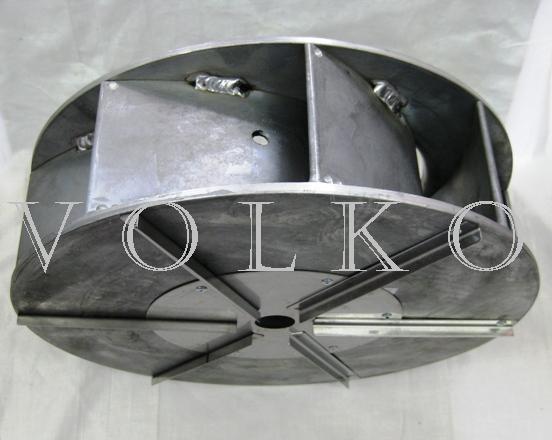

Fan Blade
Identification
Centrifugal
Also called:
Scoop Wheel or
Back Curved Impeller |
 |

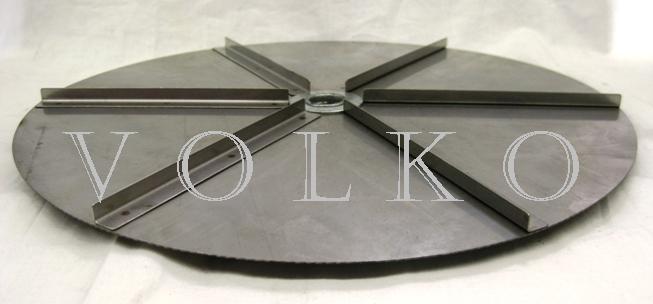

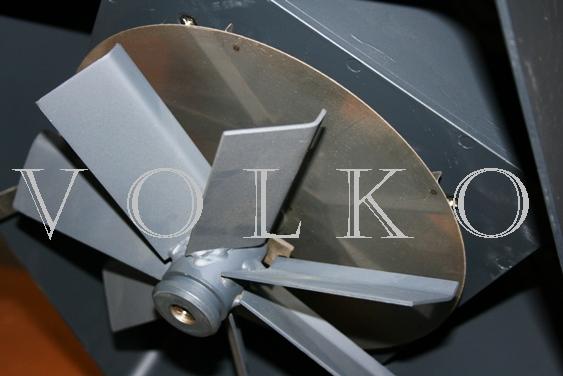

Cooling Vane
Motor Change???.. inspect the cooling vane.
An unbalanced, warped or missing cooling vane could significantly lessen the
lifespan of the motor / fan.
 |
Used on Centrifugal Blades
and with Axial Vanes on GSV / RSV fans
|
ENERVEX
FAN |
Cooling Vane |
Cooling Vane
Part Number |
|
GSV9 |
8”
( 7 7/8”) |
604.0200.0013
RES1100594 |
|
GSV12 |
10” ( 9 13/16”) |
604.0400.0013
RES1100593 |
|
GSV14 |
13” ( 12 5/8”) |
604.0600.0013
RES1100595 |
|
GSV16 |
16” ( 15") |
604.0800.0013
RES1102658 |
|
|
|
|
|
GSV200 |
Attached |
|
GSV250 |
Attached |
|
GSV315 |
Attached |
 |
|

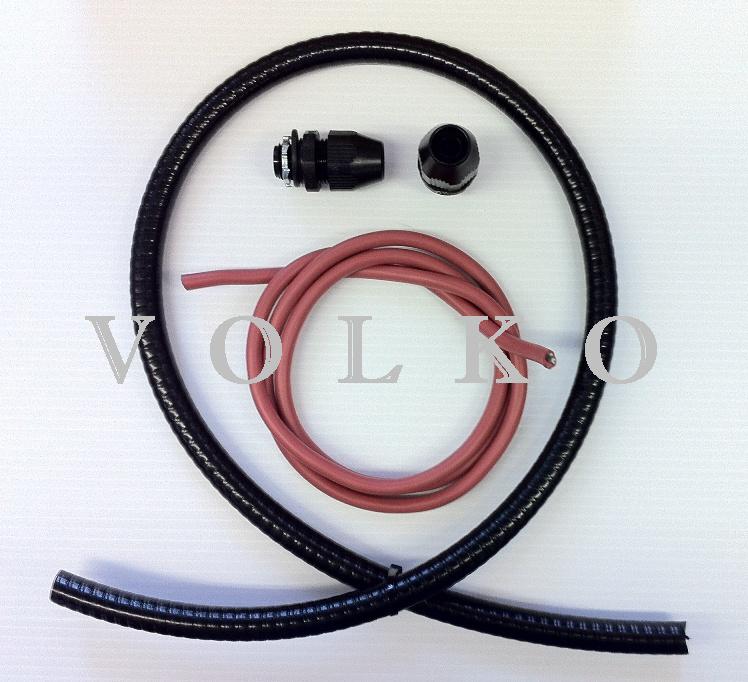

Electrical Wire / Harness Replacement
for RS GSV RSV Exhausto / Enervex Chimney Fans
 |

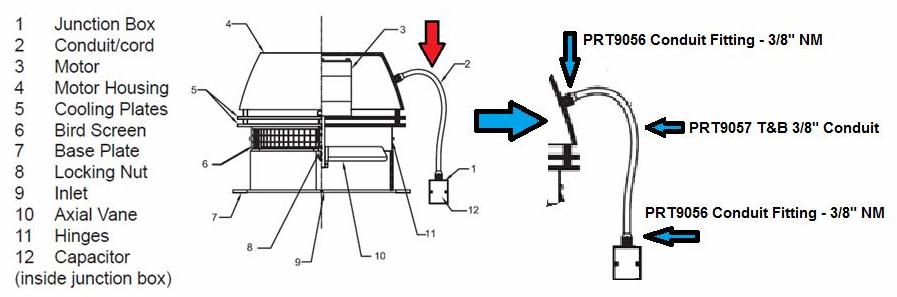

Kit Includes :
Conduit, Cord, Fittings & Capacitor |
| |
4 FT PRT9057 3/8" Black XTRAFLEX
Conduit
5 FT PRT3084 Silicone Cased 4-Wire
Harness ( CORD )
2 PC PRT9056 3/8" Conduit Fittings
1 PC Capacitor (
Sized by Fan Model )
All Exhausto /
Enervex RS Chimney Fans have capacitor start motors.
Capacitor must
be installed for proper fan function.
***Junction
box not included. |
Capacitor
Wiring Diagram |
We only provide genuine Exhausto Exodraft Enervex replacement parts.
| Fan Model |
RS9
GSV9 RSV9 |
RS12 |
RS14
GSV12 RSV12
GSV200 RSV200 |
RS16 |
GSV14 RSV14
GSV250 RSV250 |
GSV16 RSV16
GSV315 RSV315 |
| Motor Type |
1200330 E4
651.0501.1200 |
1200265 G4
651.0502.1200 |
1200284 J4
651.0503.1200 |
1200272 T4
651.0505.1200 |
1200329 Q4
651.0504.1200 |
1200795 V4
650.0503.1200 |
| Required Capacitor |
4 mfd |
6 mfd |
12 mfd |
25 mfd |
16 mfd |
30 mfd |
Call to order - 800 685 8263
Enervex?... but
my new fan says Exodraft.
Exhausto is now Exodraft, distributed as Enervex.
Read More...
Enervex Fans... draft solutions for kitchen and
